Well numberM34/5537 File numberCO6C/17110
Last known ownerWaipara Water Company Limited Well statusCapped (semi- permanent)
Street/roadRam Paddock Road NZTM grid referenceBV24:74299-31185
LocalityWaipara NZTM X and Y1574299 - 5231185
Location descriptionin Paddock approx 250 m north of Georges Road Waipara Location accuracy1 - 2m
CWMS zoneHurunui - Waiau UseIrrigation, Water Level Observation
Groundwater allocation zoneWaipara Water level monitoring--
Depth191.10m Water level count269
Diameter255mm Initial water level16.17m below MP
Measuring point descriptionToC Highest water level15.57m below MP
Measuring point elevation116.32m above MSL (Lyttelton 1937) Lowest water level20.79m below MP
Elevation accuracy< 0.1 m First reading05 Apr 2002
Ground level0.45m below MP Last reading16 Apr 2026
Strata layers40 Calc min 80%18.02m below MP (Estimated)
Aquifer name Aquifer tests0
Aquifer typeUnknown Yield drawdown tests3
Drill date25 Jun 2002 Max tested yield7 l/s
DrillerClemence Drilling Contractors Drawdown at max tested yield61 m
Drilling methodRotary/Percussion Specific capacity0.15 l/s/m
Casing materialSTEEL Last updated02 Apr 2025
Pump typeCentrifugal (Surface) Last field check16 Apr 2026
Water use dataYes

Screens

Screen no. Screen type Top (m) Bottom (m) Slot size (mm) Slot length (mm) Diameter (mm) Leader length (mm)
1 Stainless steel 182.5 186.5
2 Stainless steel 187.5 189.6

Step tests

Step test date Step Yield Yield GPM DrawDown Step duration
22 Mar 2001 1 2 26.396368 13.54 0
22 Mar 2001 2 4 52.7927361 56.36 0
22 Mar 2001 3 7 92.38728 60.94 0

Comments

Comment date Comment
28 Aug 2000 Applicant proposing to drill up to 7 bores (M34/5534-M34/5540) until they strike water, but is likely that only 1 well will actually be used for abstraction.
25 Jun 2001 Applicant provided actual grid reference with groundwater application. Original proposed grid reference was M34:8374-9311. Actual grid reference is M34:841-928.
08 Apr 2002 Gridref changed from: M34:8410-9280. Well QA Ian Lloyd 5/4/02, well drilled but not used, no power to the site. Has a temporary Wooden cap.
07 May 2003 Bore depth shown as 191.1 in database but incomplete borelog shows drilled to 168.9m Borelog states casing driven to 168.9m unable to move further rotary shoe collapsed. Handwritten note at bottom of log sheet states hole deepened to 195m, 200mm screen set at 184.2m - 194.2m, 1m of sump
21 Nov 2003 Another borelog came in for M34/5537 ' observation bore' but does not match this one, presumabley one of the other 7 bore concented wells here.
13 Jan 2004 Gridref changed from: M34:8429-9282. Measured rate of take 6.6 l/s @36 hrs every 3 days.
25 Mar 2004 Step test data added from consent file by Russel Sanders (!)
25 Aug 2008 This well has a consent requirement that requires the consent holder to supply water levels.It is also an Ecan monitoring well,so GW staff measure the W/Ls for the consent holder.
31 Mar 2009 Bore log changed. Previous log identical to M34/5608. TRIM Bore log used is marked "observation bore M34/5537" received 25 June 2003. This bore log has the correct locality. Well depth -191.1 on bore log.
10 Aug 2010 Gridref changed from: M34:84293-92810 to M34:84300-92816
10 May 2011 First WL reading set as ISWL
21 Jul 2011 Previous owner Stewart, RG
02 Sep 2014 Changed GL to MP measurement from -0.53m to -0.45m after QA in August 2014.
11 Apr 2025 Status of bore updated from active to capped. Photo received from consent holder 2/04/25.

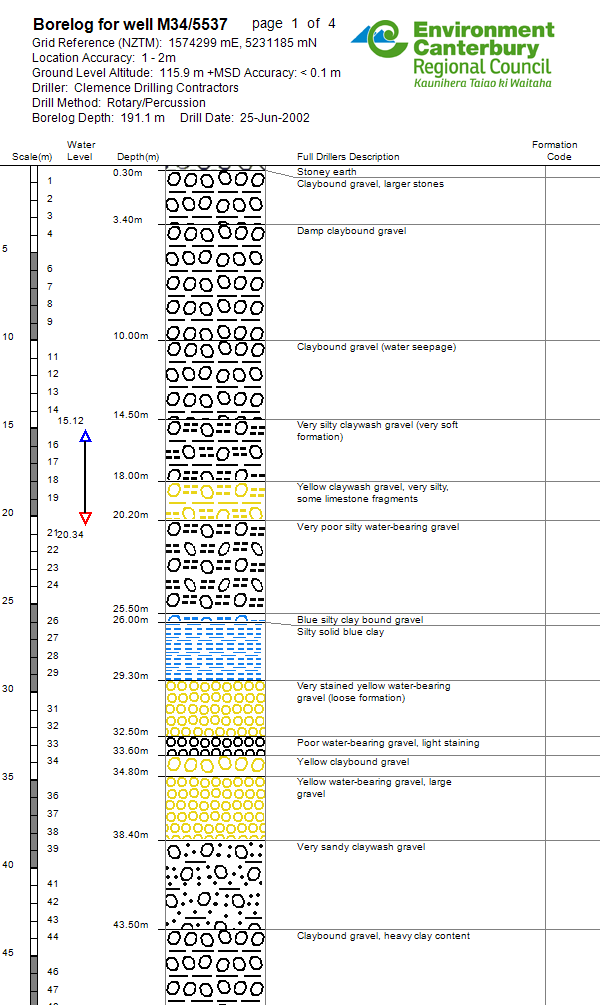

Bore log
